Recommended Products for
Electronics Testing & Handling
Key Benefits
-
Fast and easy deployment unlocks the best ROI
-
Augments workforce and overcomes labor shortages
-
Automates complex workflows and assays, freeing lab technicians for more meaningful work
-
Increases lab throughput while improving quality
-
Highest workspace density saves valuable floor space
-
Most reliable sample handler with MTBF of 125,000 hours and design life of 100,000 hours
Product Features

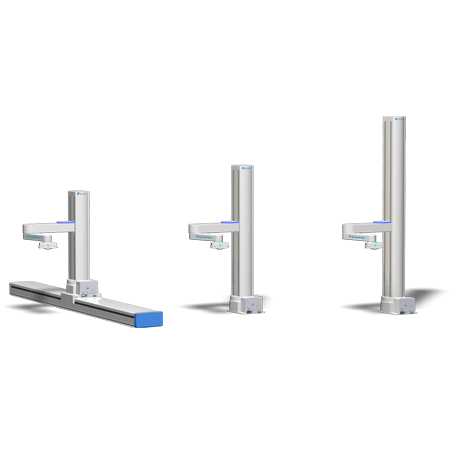

The PreciseFlex c5 robot, with rotary base, has a unique configuration with horizontal articulation for the major axes and a tall Z-axis (up to 1,160 mm). The Vertical Column work envelope enables the robot to reach into racks, shelves, or stacked machines. The Vertical Column work envelope is much more efficient than the spherical work envelope used by most traditional collaborative robots. With the cylindrical column work envelope and embedded controls, PreciseFlex robots offer the highest workspace density, saving valuable floorspace.
1. Highest Instrument Density Reach into instruments, hotels, and nests with tall Z-axis and slim arm design
2. IntelliGuide Servo Gripper (Optional) For handling SBS Plates, Tubes, and Vials
3. Range of Motion Vertical reach: 400, 750, 1160 mm Horizontal: 721.20 mm at TCP, 789.77 mm with IntelliGuide s23
4. Highest Throughput Low collision forces enable without sacrificing safety
5. Save Valuable Floorspace With compact footprint and embedded controller
6. Extend Robot’s Reach
7. Highest Reliability With fully-integrated Collaborative Linear Rail (optional) With MTBF of 125,000 hours
PreciseFlexTM 3400
The PreciseFlex 3400 robot is well suited for Electronics Test and Handling, Machine Feeding (load/upload), and Lab Automation when a bit more payload is needed.
Available with a linear rail to extend the horizontal reach.
Key Benefits
- Free staff to perform higher level tasks and increase capacity by operating facility over 2nd and 3rd shifts.
- Space-saving design enables the robot to reach many stations while keeping the footprint small.
- Optional linear rail extends the horizontal reach by up to 2.0 meters.
- High reliability and long design life of 40,000+ hours and near-zero maintenance.
- Teaching locations is fast and easy with near-zero friction free-mode.
- Automatically update locations when things change with Auto-Teach enabled by IntelliGuide™ Vision.
- Fast and easy deployment unlocks the best ROI.
- Reduces repetitive stress injuries and frees employees for more meaningful work.
- Highest workspace density and embedded controller saves valuable floor space.
Product Features
The PreciseFlex 3400 robot has a unique configuration with horizontal articulation for the major axes and a tall Z-axis (up to 1,160 mm). The vertical column work envelope enables the robot to reach into racks,
shelves, or stacked machines. The vertical column work envelope is much more efficient than the spherical work envelope used by most traditional collaborative robots.
With the cylindrical column work envelope and embedded controls, PreciseFlex cobots offer the highest workspace density, saving valuable floorspace.
1. Highest Workspace Density
Reach into machines and shelves with tall Z-axis and slim arm design
2. Save Time and Increase Reliability
With options like IntelliGuide Vision and Servo Grippers
3. Z-Axis Range of Motion
Horizontal reach 588 mm (without gripper)
Vertical reach 400, 750, 1160 mm available
4. Highest Throughput
Low collision forces enable without sacrificing safety
5. Save Valuable Floorspace
With compact footprint and embedded controller
6. Extend Robot’s Reach
With fully-integrated Collaborative Linear Rail (optional)
7. Highest Reliability
With an MTBF of 125,000 hours
Key Benefits
• Fast and easy deployment unlocks the best ROI
• Augments workforce and overcomes labor shortages
• Reduces repetitive stress injuries and frees employees for more meaningful work
• Highest workspace density saves valuable floor space
• Most reliable robots with an MTBF of 125,000 hours and design life of 100,000 hours
• Highest performance increases throughput
• Low maintenance
Product Features
The PreciseFlex c10 has a unique configuration with horizontal articulation for the major axes, and a tall Z-axis (up to 1,420 mm). The vertical column work envelope enables the robot to reach into racks, shelves, or stacked machines. The vertical column work envelope is much more efficient than the spherical work envelope used by most traditional cobots. With the cylindrical column work envelope and embedded controls, PreciseFlex cobots offer the highest workspace density, saving valuable floorspace.
1. Highest Workspace Density
Reach into machines and shelves with tall Z-axis and slim arm design
2. Highest Reliability
With an MTBF of 125,000 hours
3. Range of Motion Z-Axis
500, 1000, and 1420 mm (Horizontal Reach) 896 mm
4. Highest Throughput
Low collision forces enable without sacrificing safety
5. Save Valuable Floorspace
With compact footprint and embedded controller
Key Benefits
- Fast and easy deployment unlocks the best ROI
- Augments workforce and overcomes labor shortages
- Reduces repetitive stress injuries and frees employees for more meaningful work
- Highest workspace density and embedded controller saves valuable floor space
- Most reliable cobots with MTBF of 125,000 hours and design life of 100,000 hours
- Highest performance increases throughput
- Low maintenance
Product Features
The PreciseFlex c8A robot has a unique configuration with horizontal articulation for the major axes, and a tall Z-axis (up to 1,420 mm). The vertical column work envelope enables the robot to reach into racks, shelves, or stacked machines. The vertical column work envelope is much more efficient than the spherical work envelope used by most traditional cobots. With the vertical column work envelope and embedded controls, PreciseFlex cobots offer the highest workspace density, saving valuable floorspace.
1. Highest Workspace Density
Reach into machines and shelves with tall Z-axis and slim arm design
2. 6-Axis Articulation
When 4-Axes are not enough
3. Range of Motion
Horizontal Reach) 896 mm with Joint 5 at 90° (Horizontal Reach) 985 mm with Joint 5 at 0°
4. Highest Throughput
Low collision forces enable without sacrificing safety
5. Save Valuable Floorspace
With compact footprint and embedded controller
Software & Accessories
Discover how PreciseFlex empowers users to build and deploy robotic applications with ease using our suite of software tools. Take your automated workflow to the next level with IntelliGuideTM Vision—the cutting edge solution for seamless vision integration with PreciseFlex robots. Whether you’re new to automation or a seasoned developer, our solutions offer a seamless path from basic to advanced functionality.
Start Automating Today
Explore how PreciseFlex can accelerate deployment, reduce engineering overhead, and scale with your applications — from OEM systems to high-density workcells.
